Additional information
| VERSION | OD & EV (XT60), OD(PWM:ODD ch – 15ch), EV(PWM:EVEN ch – 16ch), OD & EV (Deans) |
|---|

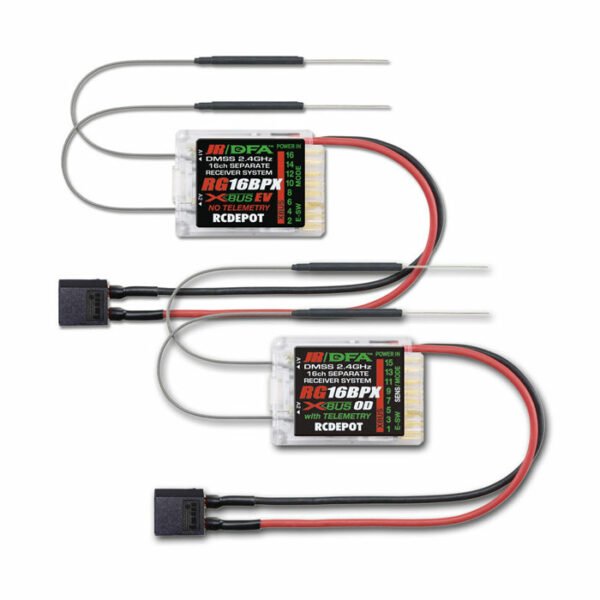

RG16BPX 2K receiver
€135,28 – €260,17
DMSS 2.4GHz 16ch separate receiver system with E-Swich DMSS/Xbus
This 16ch separate receiver system.
XBus compatible Diversity 16channel DMSS receiver w/Hybrid output port available
All output terminal to share both PWM & XBus.
XT60 connector equipped for 16AWG power cable out put from receiver voltage input.
■ Dimension :14 x 31 x 42.5㎜ (par piece)
■ Weight : 15g (par piece)
■ Receiving System : 16 channel DMSS System with XBus (as a pair)
■ PWM Output ch : OD/1.3.5.7.9.11.13.15ch ・EV/2.4.6.8.10.12.14.16ch
■ Operating Voltage : 4.5-8.5V
■ Bidirectional communication : Xbus compatible
■ Telemetry Module integrated
■ Comply with E-switch
■ Capabel to adopt one additonal remote antenna as an option.
■ Fullrange receiver
■ Full range telemetry capability.(EV only)
■ 16ch Instruction Video 1
■ 16ch Instruction Video 2
